Resiliency Through Chaos: Break It Before It Breaks You with Gremlin

Posted on4 Months ago by I Putu Retya Mahendra 533

"Discover how Gremlin empowers teams to build resilient systems by breaking things — on purpose."

Introduction: Why Chaos Engineering?

In the world of modern, distributed systems, failure is inevitable. Microservices, cloud environments, and real-time user expectations mean that even the smallest glitch can escalate into a critical outage. Traditional testing often misses these “real-world” scenarios, because they don’t simulate the unpredictable nature of live environments.

That’s where Chaos Engineering comes in.

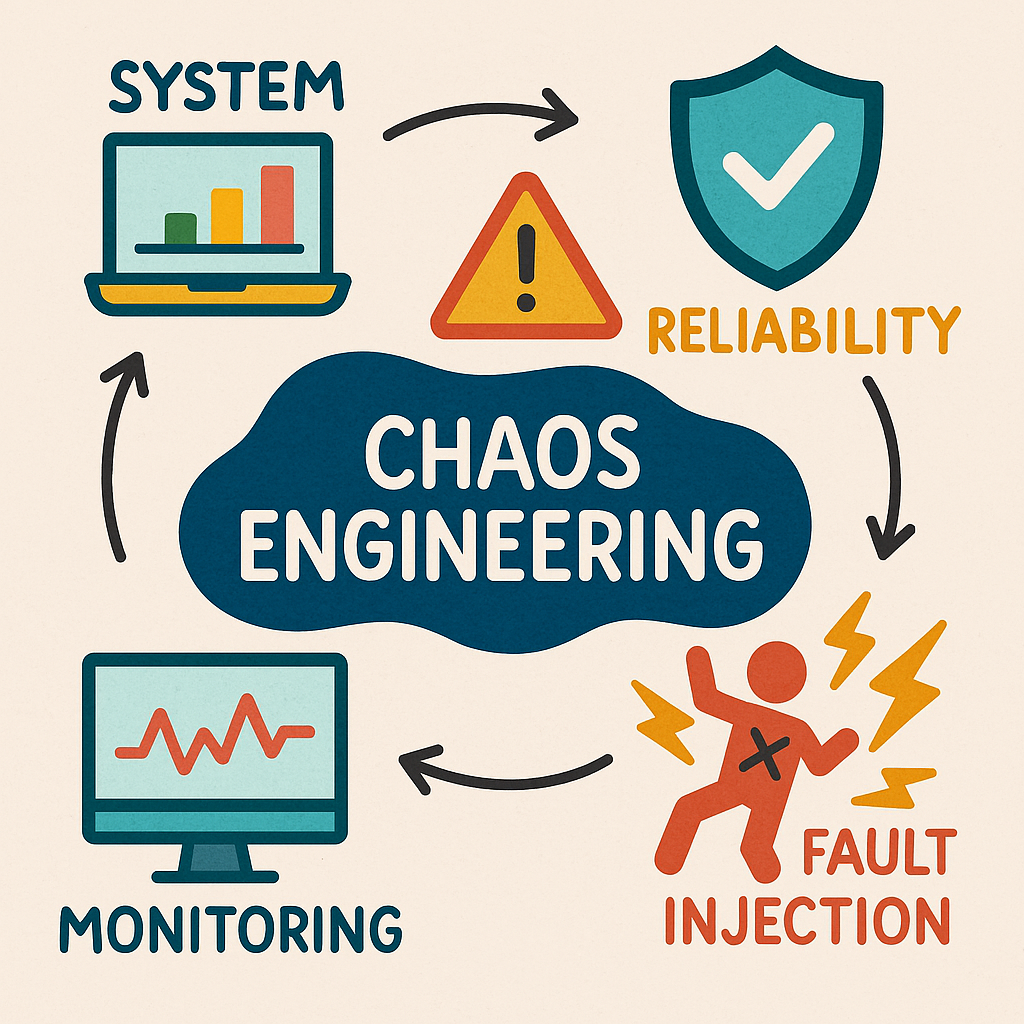

"Chaos Engineering is the practice of intentionally injecting failures into systems to uncover vulnerabilities before real users are impacted. The goal isn’t destruction — it’s resilience. By “breaking” your systems in a controlled, observable way, your team can learn how to recover quickly and design services that withstand real-world stress."

This approach was famously pioneered by Netflix through a toolset called the Simian Army, most notably Chaos Monkey, which would randomly shut down production instances to test system resilience. It was radical — but it worked. The Netflix team learned to architect their systems to tolerate real-world failure scenarios.

Since then, Chaos Engineering has evolved into a best practice for reliability, adopted by companies across the globe.

What is Gremlin?

Gremlin is a modern Chaos Engineering platform that takes the original ideas behind tools like Chaos Monkey and makes them safer, more controlled, and easier to integrate into everyday operations.

It provides teams with a user-friendly interface and CLI to run chaos experiments — like simulating high CPU usage, adding network latency, killing processes, or disrupting DNS — without bringing the whole system down.

Gremlin enables teams to:

Perform safe, controlled experiments
Limit the blast radius
Schedule and automate failure tests
Validate monitoring, alerting, and recovery strategies
Improve overall system reliability and customer experience

Getting Started with Gremlin

Let’s walk through a basic example of using Gremlin to simulate a fault injection on a host. This kind of attack helps you test whether your system can gracefully handle sudden load or resource exhaustion.

✅ Prerequisites

A Gremlin account
Gremlin agent installed on your target system (Linux, Windows, Docker, or Kubernetes)
Permission to run chaos experiments

Step 1: Add Gremlin to Your Kubernetes Cluster

Gremlin provides a Kubernetes integration that makes it easy to install and manage chaos experiments. Use Helm to install Gremlin in your cluster

helm repo add gremlin https://helm.gremlin.com
helm repo update

helm install gremlin gremlin/gremlin \
--namespace gremlin \
--create-namespace \
--values values.yaml \
--set gremlin.secret.clusterID= //add your value

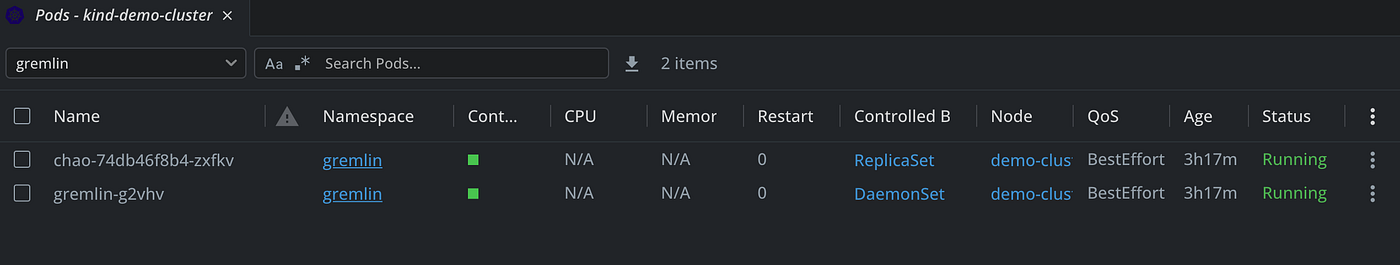

After install gremlin to cluster

This installs the Gremlin DaemonSet that allows you to run chaos experiments in your cluster.

Step 2: Define Your Services with Gremlin Annotations

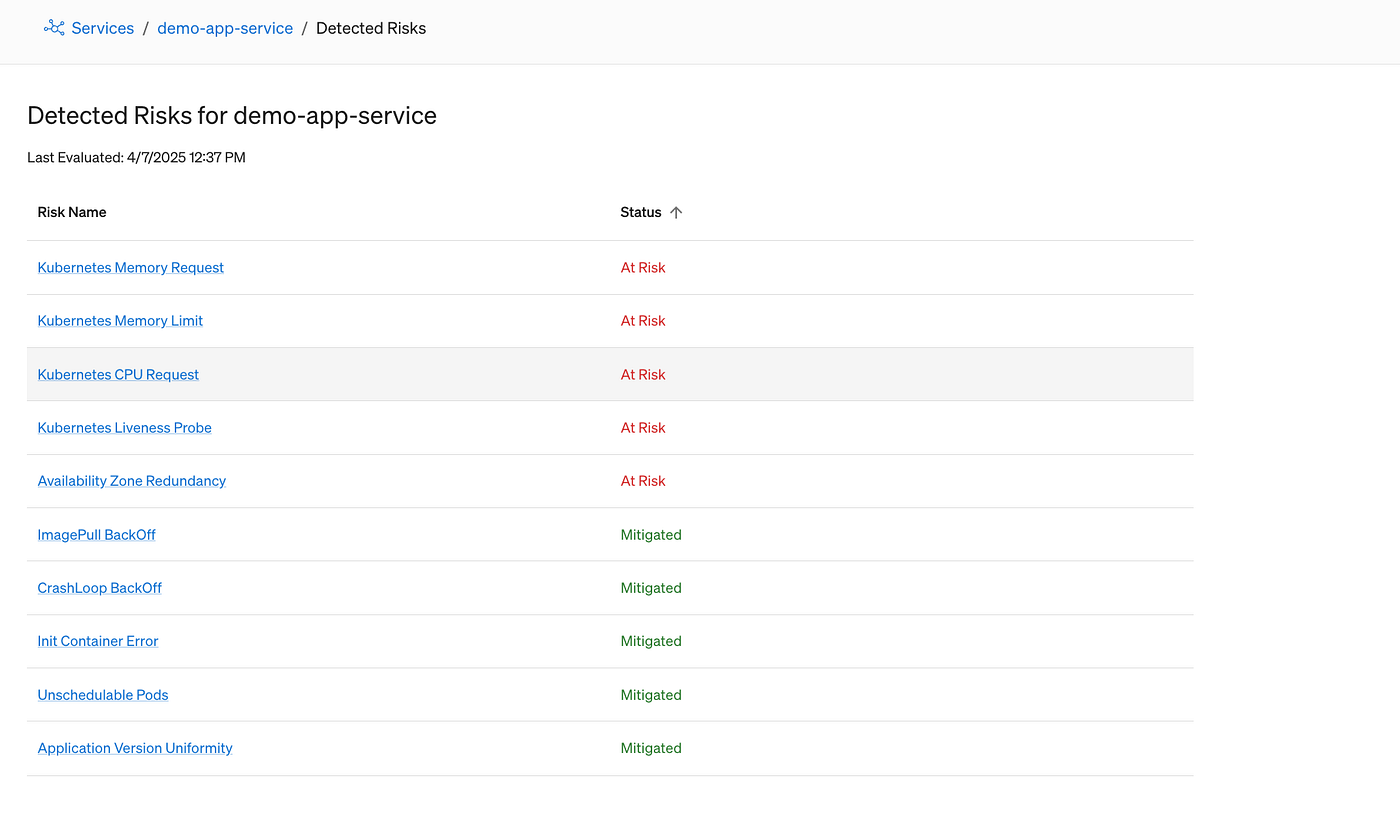

To enable Reliability Tests, annotate the services you want to test. This helps Gremlin identify and organize services for chaos experiments. Add the following annotations to your deployment YAML:

metadata:
  annotations:
    gremlin.com/service: "demo-app-service"
    gremlin.com/role: "app"

This tells Gremlin how to map chaos tests to your Kubernetes services

Step 3: Add Health Check Service to Gremlin

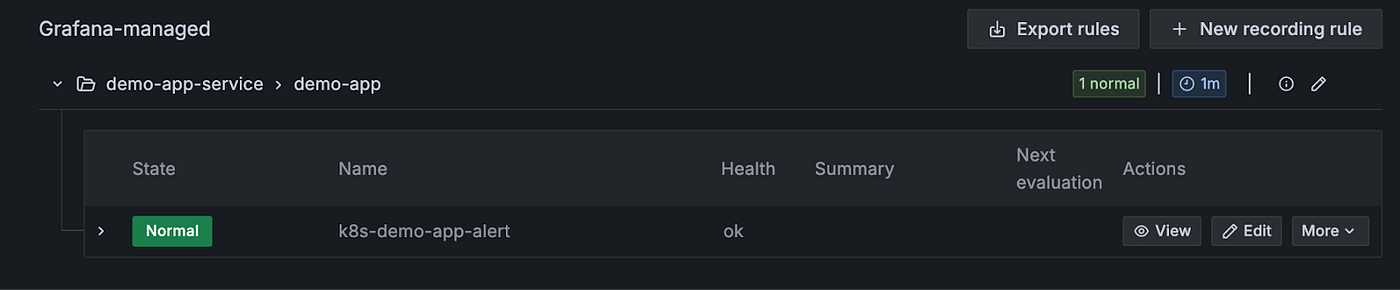

To monitor whether a service remains healthy during an experiment, Gremlin uses health checks.

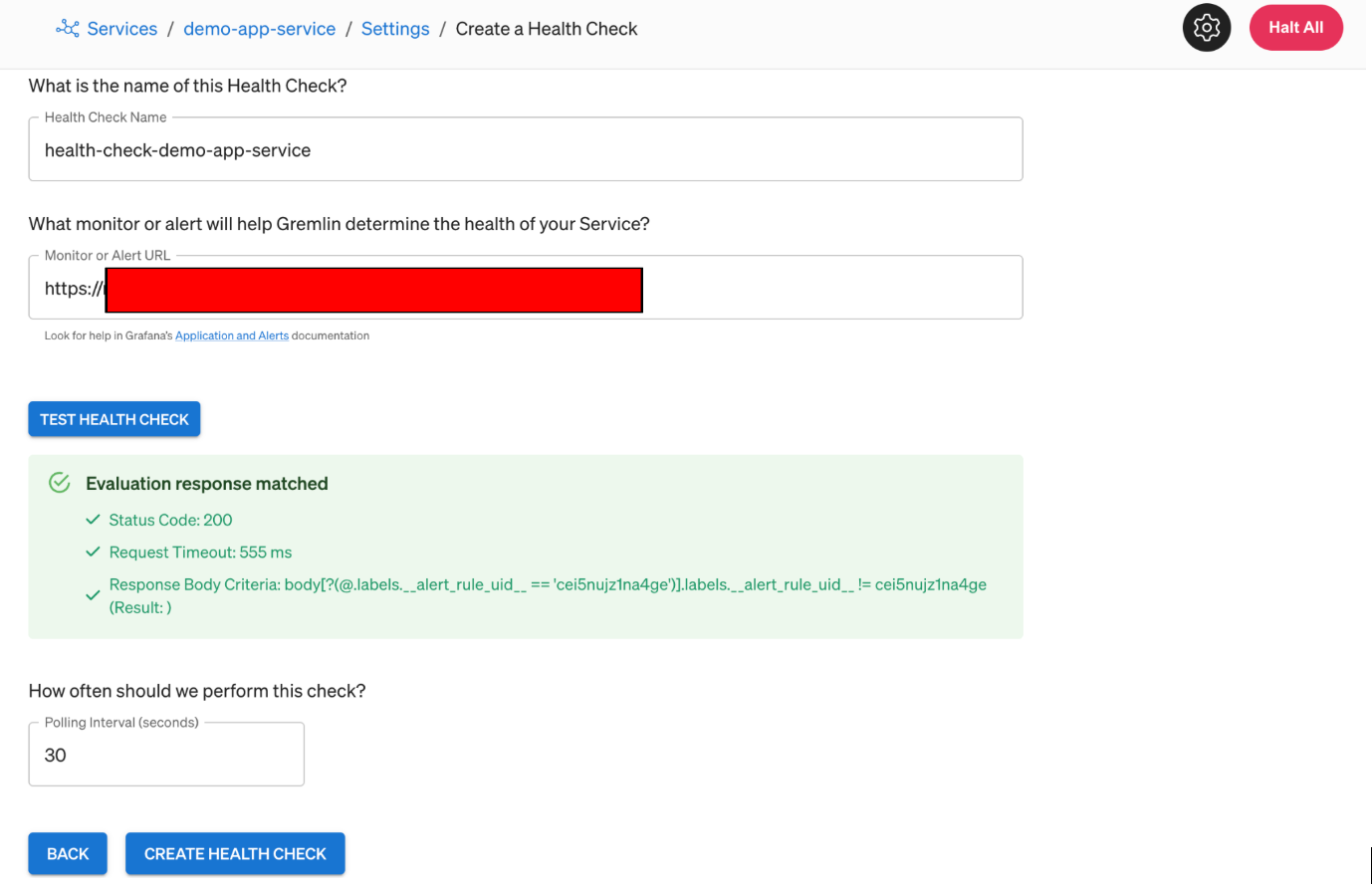

✅ Define a Health Check in the Web UI

Go to your service in Gremlin App.
Click on “Settings” > “Health Checks”.
Add an HTTP health check URL.
Set expected HTTP response (e.g., 200 OK).
Optionally, define thresholds for retry logic and timeouts.

This allows Gremlin to auto-halt a test if your service becomes unhealthy.

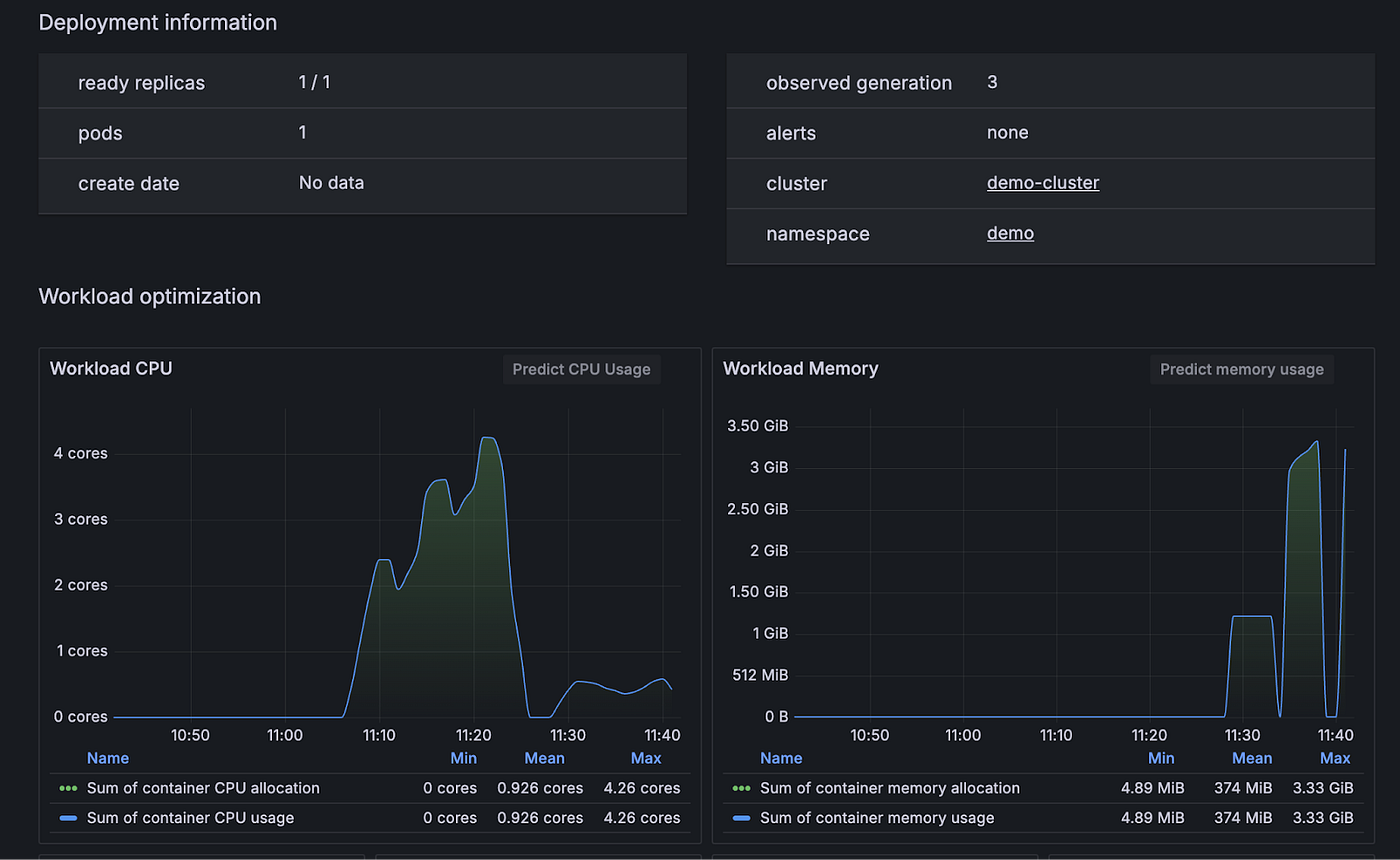

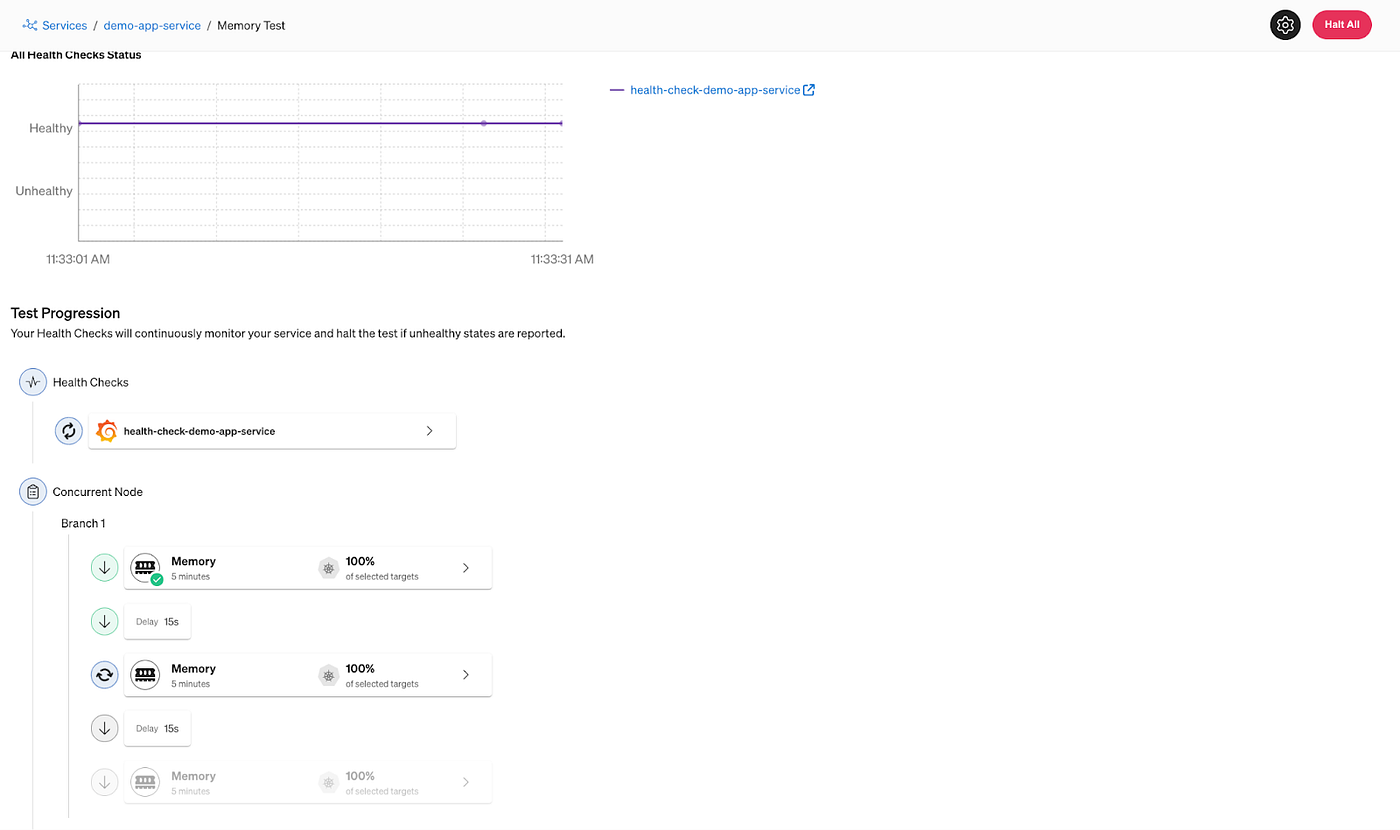

Step 4: Fault Injection

Navigate to Services > [Your Service] in the Gremlin UI. You’ll see a breakdown of tests by:

Scalability (CPU, Memory)
Redundancy (Host, Zone)

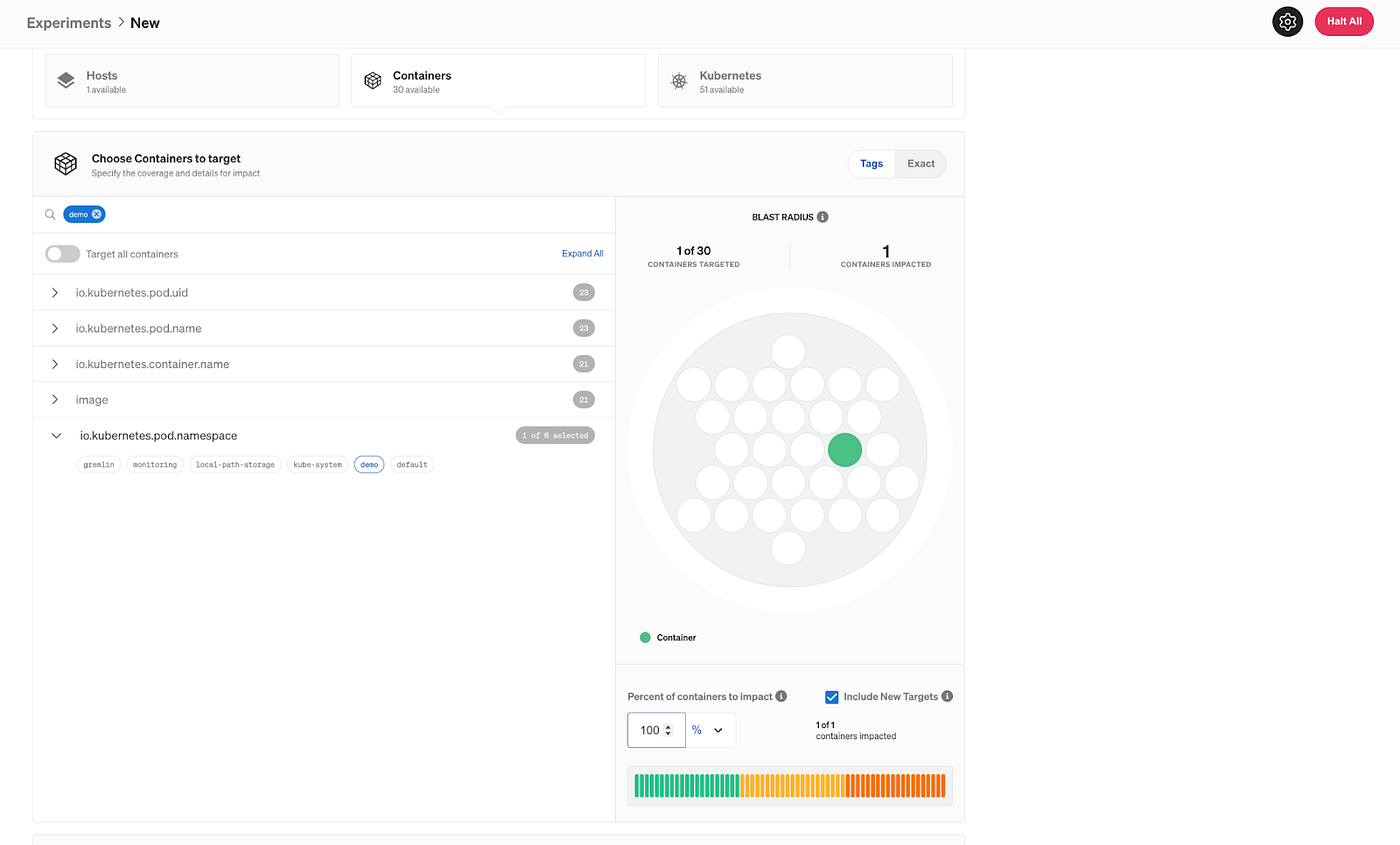

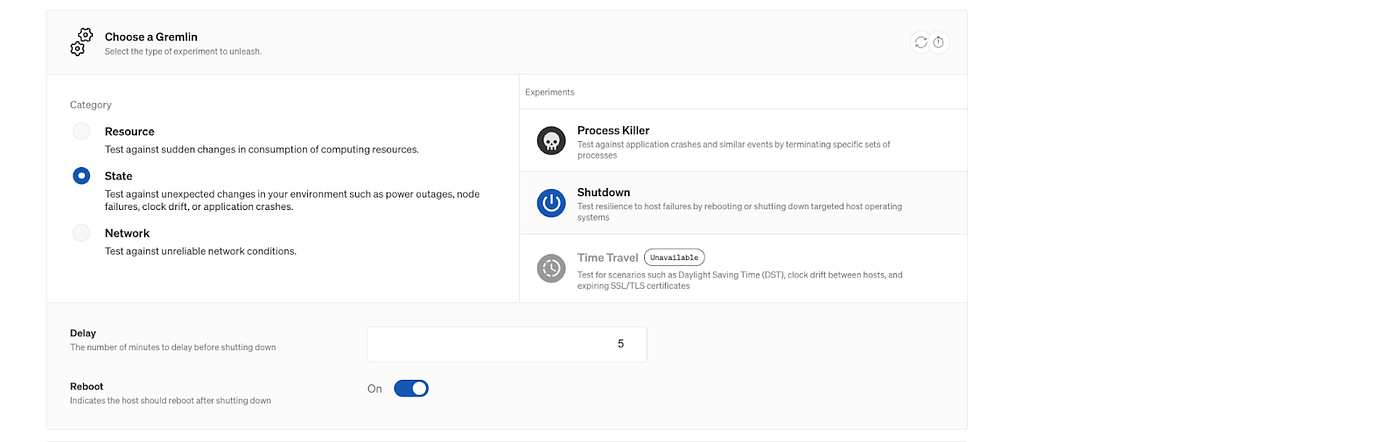

Customize Chaos with Experiment ModeIf you want more flexibility, switch to Experiment Mode, where you can:

Design your own chaos experiments
Combine multiple attack types (e.g., CPU + latency + shutdown)
Select specific hosts, containers, or services
Configure blast radius and attack duration
Add health checks to automatically halt experiments when instability is detected

Experiment Mode is perfect for testing complex failure scenarios that match real-world outages or for chaos drills across multiple services.Reuse Scenarios with Test SuitesFor recurring tests, Gremlin allows you to group multiple experiments or reliability tests into a Test Suite. This helps you:

Automate chaos testing across multiple services
Run a sequence of attacks in one click
Standardize reliability validations across teams
Schedule regular chaos tests (e.g., weekly, monthly)

To create a Test Suite:

Navigate to the Test Suites section.
Add individual Reliability Tests or Experiments.
Set the order, schedule, and health checks.
Run it on demand or automate via CI/CD.

Step 5: Run Tests

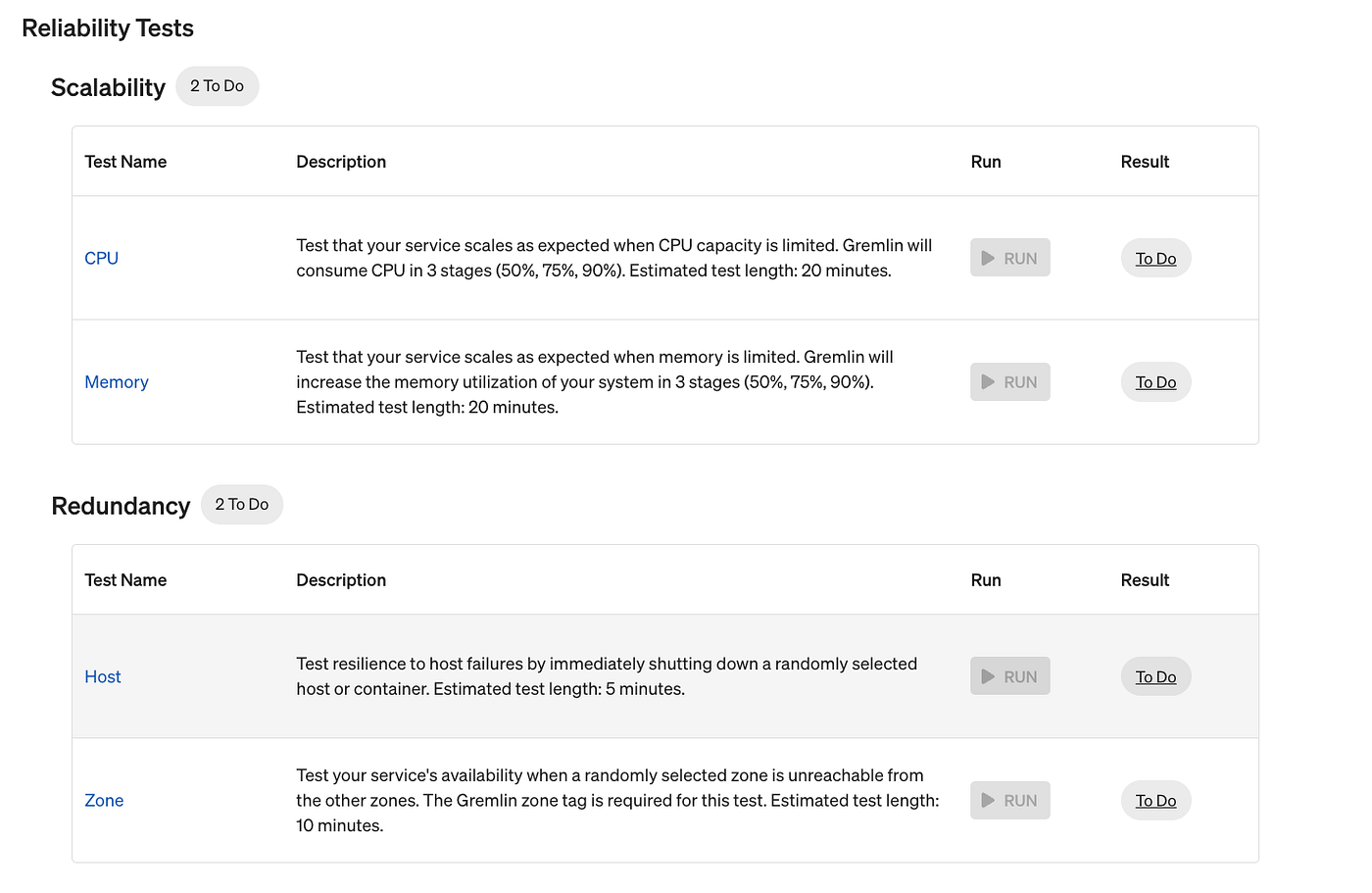

These tests are built-in, safe-to-run chaos experiments that focus on scalability and redundancy, two pillars of system reliability.You can access them via:
Gremlin UI → Services → Select your service → Reliability Tests

Step 6: Get the Report

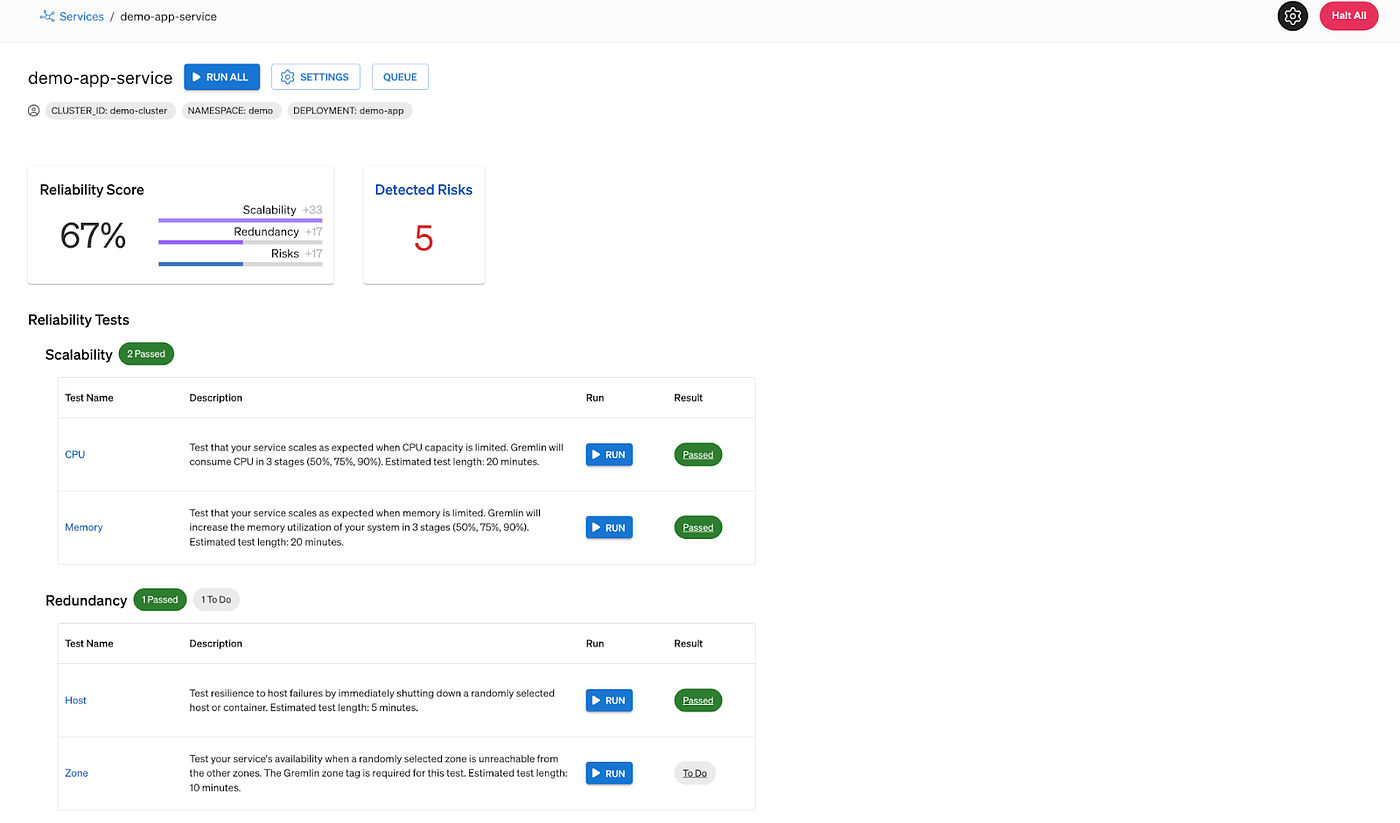

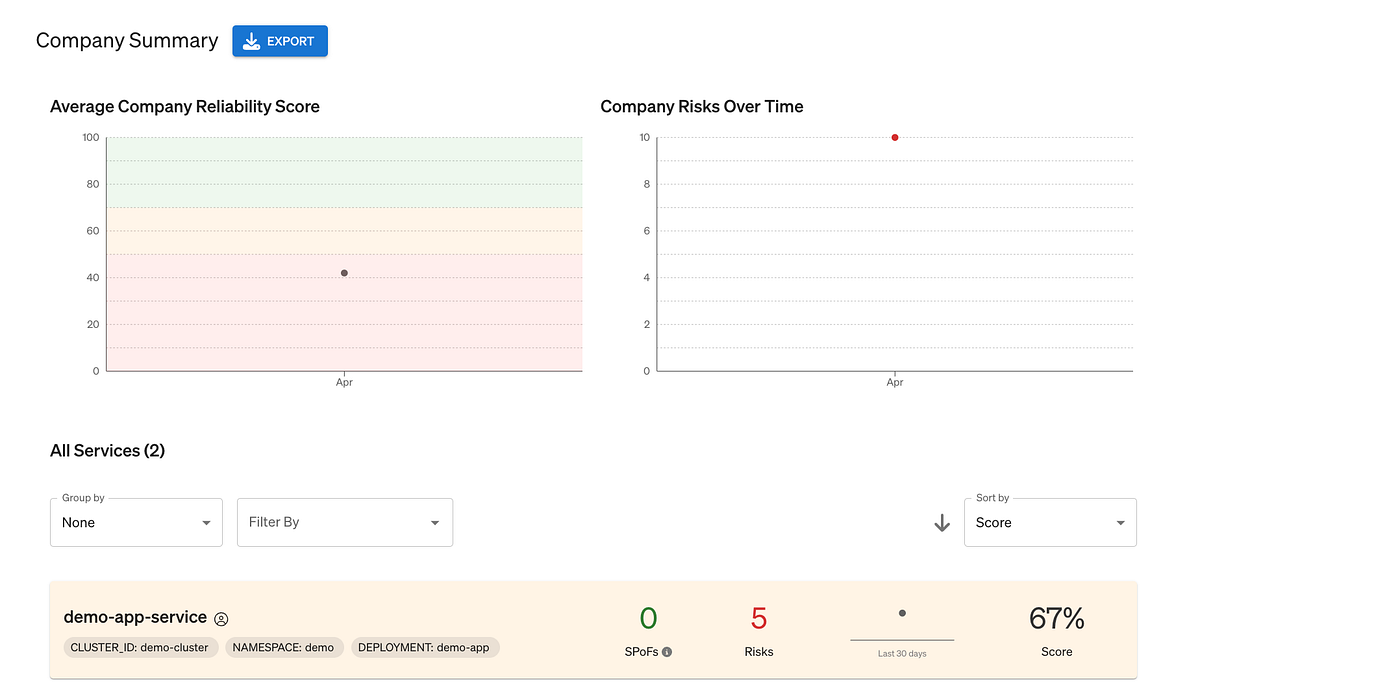

After running the tests, Gremlin will generate a Reliability Score Report that includes:

Passed tests

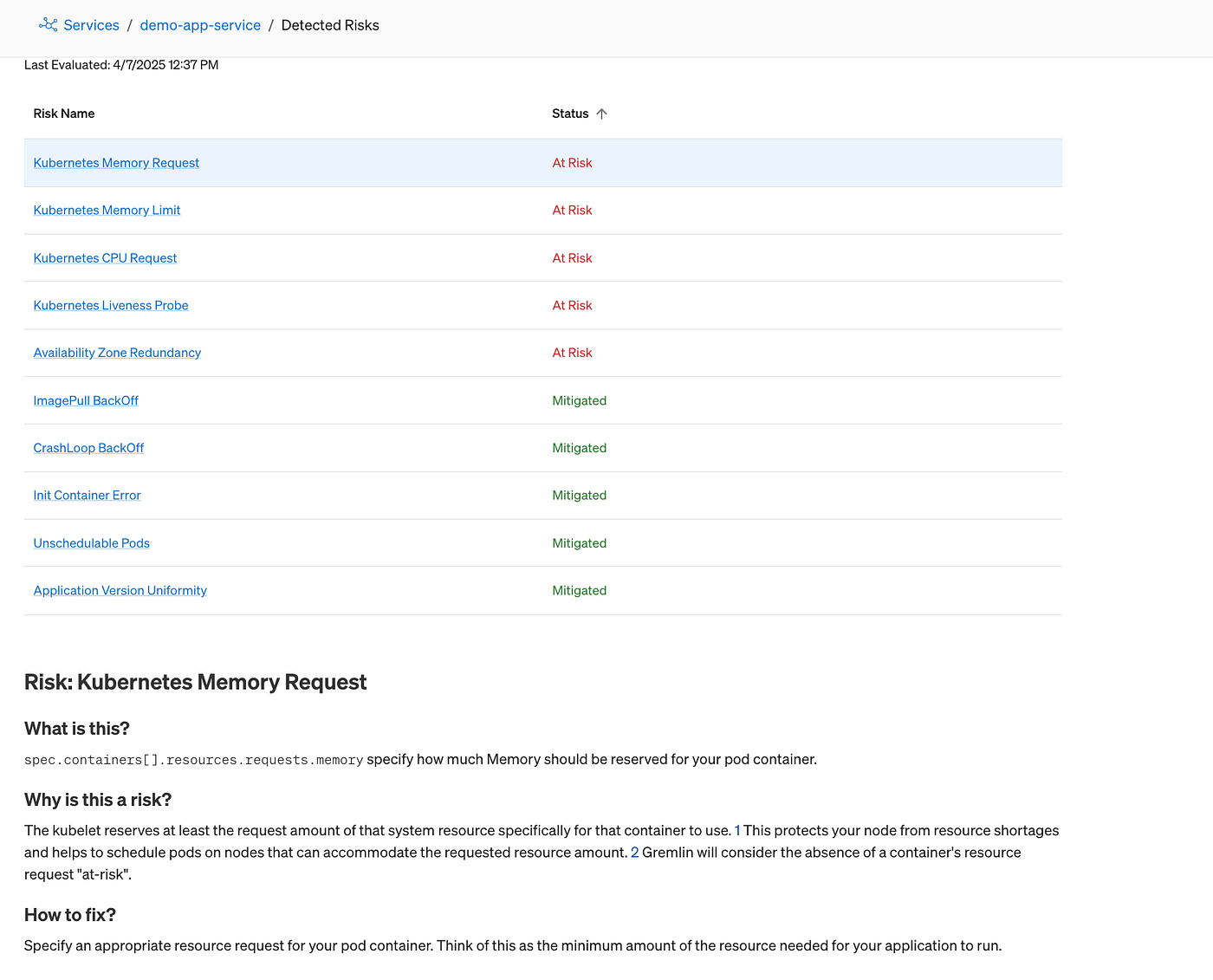

Risks detected
Scalability and Redundancy scores
Recommendations to improve resilience

You’ll see results for each test and a total Reliability Score out of 100%.Use this report to:

Share results with engineering and leadership teams
Track progress over time
Prioritize infrastructure improvements

Final Thoughts

Running chaos experiments with Gremlin doesn’t mean introducing random destruction. It’s a strategic, data-driven way to validate reliability, reduce incident frequency, and improve customer trust.By following this step-by-step guide — from installation to running tests and reviewing reports — you’ll be well on your way to building a more resilient Kubernetes environment.

"So go ahead. Break it before it breaks you."
